50W Fiber Collimator (3mm~8mm Beam size)

More Views

50W Fiber Collimator (3mm~8mm Beam size)
CN¥1.00

Availability: In stock

Spec. PDF

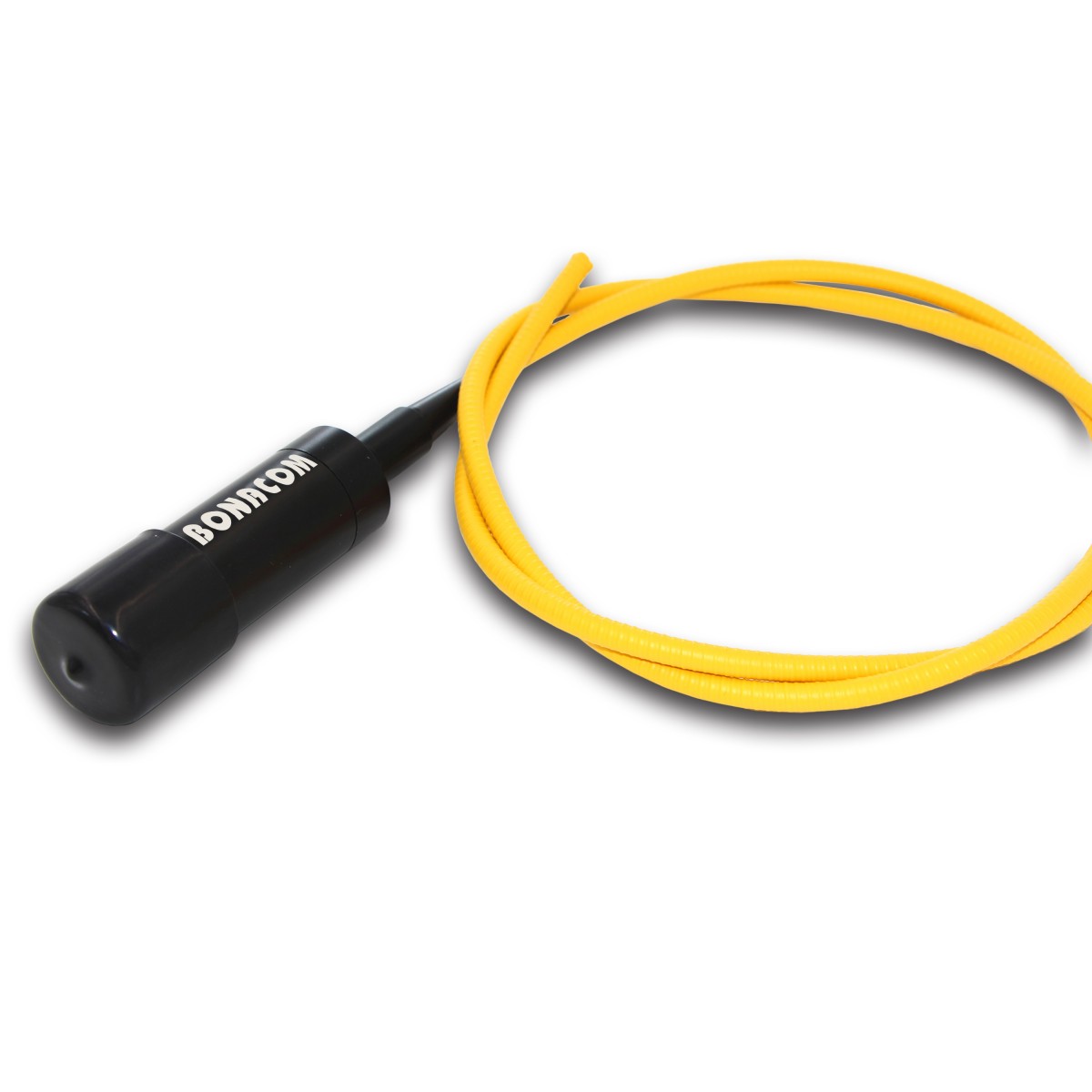

Bonacom's High Power Fiber Collimator adopt advanced technologies of direct fusion to a large beam expanding end cap ensuring safe power density, and a mode stripper that prevents burning the buffer/jacket by removing unwanted back-reflection radiation. The beam size ranges from 2mm to 8mm. It is characterized with low insertion loss, high isolation, high beam roundness.


Description

Details

Specification

Parameters

Unit

Value

Center Wavelength

nm

1064&1030 or Specified

Operating Wavelength Range

nm

±30

Working Distance

mm

1000

Max. Insertion Loss at 23℃

dB

0.3

Min. Extinction Ratio at 23℃, only for PM

dB

20

Max. Polarization Dependent Loss at 23℃, only for non-PM

dB

0.1

Min. Beam Roundness

%

90

Min. Return Loss

dB

50

Nominal Output Beam Diameter (1/e2 )

mm

4, 5, 7

Beam Diameter Tolerence

mm

±0.5 or ±1

Max. Beam Divergence

mrad

0.5 or 1

Max. Average Optical Power

W

30, 50 or Specified

Max. Peak Power for ns Pulse

kW

50 or Specified

Fiber Type

-

PLMA-GDF-10/125-M or specified

Max. Tensile Load

N

5

Operating Temperature

+5~+55

Storage Temperature

-5~+75



Part Number: HPMCI/HPICI-1111-2345--666-789-A-BBCC

1111

-Center Wavelength:

1064=1064nm ,1030=1030nm,SSSS=Specified

2

-Axis Alignment:

F=Slow axis working, Fast axis blocked, B=Both axis working, N=Non-PM

3

-Beam Diameter:

4=4mm, 5=5mm, 7=7mm, S=Specified

4

-Beam Diameter Tolerence:

1= ± 0.5mm, 2= ± 0.1mm

5

-Beam Divergence:

1= 0.5mrad, 2= 1mrad

666

-Fiber Type:

018=PLMA-GDF-10/125-M, 021=Nufern LMA-GDF-20/130-09M, S=Specified

7

-Package Dimension:

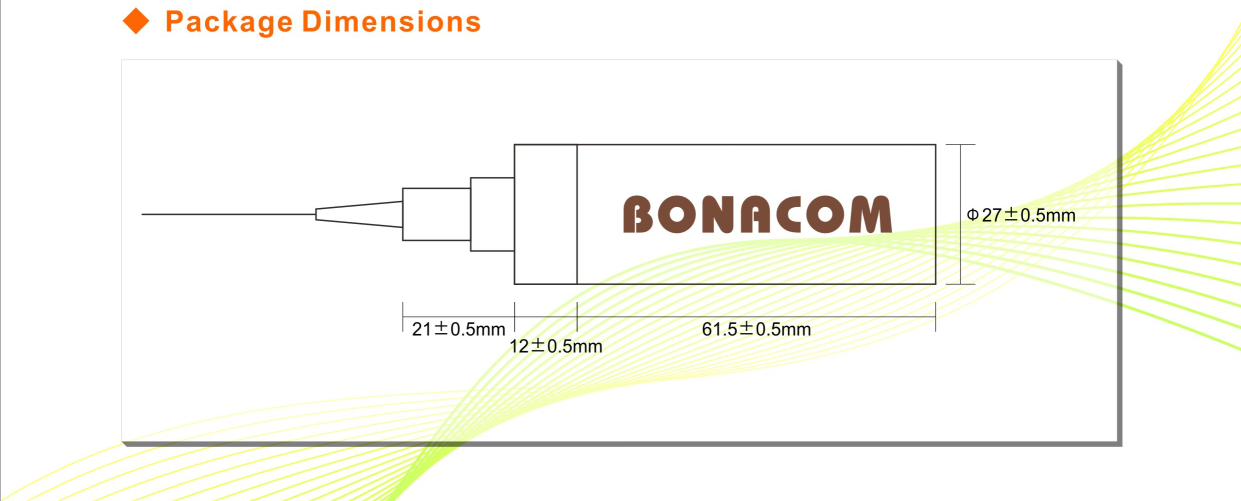

0=φ27x73.5mm

8

-Armoured Cable Length:

1=1m Armoured cable (OD:6mm), 2=2m Armoured cable (OD:6mm), S=Specified

9

-Fiber Length:

1=1m bare fiber

A

-Fiber Length:

1=1m,2=m,S=Specified

BB

-Average Power:

20=20W, 30=30W, SS=Specified

CC

-Pulse Power:

10=10kW, 20=20kW, SS=Specified
